Processor / System Bus - Dual-Core Intel Xeon processor 5000/5100 sequence - Quad-Core Intel Xeon processor 5300 sequence - 2 * Socket LGA771 - FSB 800/1066/1333 Core Logic - Intel 5000V Memory Contoller Hub (MCH) & Intel 6321ESB Form Factor - SSI CEB 1.1 Compliant , 12" * 10.5" Memory - Total 6 Slots (2-Channel). Supports up to 24GB memory - Memory Type: Fully-Buffered DIMM DDR2 533/667 Reg. ECC Expansion Slots - 1 * PCI-E x8 slot (x8 link), 1 * PCI-E x8 slot (x4 link) - 2 x PCI-X 133/100 MHz, 1 x PCI Storage - 1 * IDE, support UltraATA 33 / 66 / 100 - 6 SATA2 300MB/s ports - Intel Matrix Storage (for Windows only) (Support software RAID 0, 1, 10 & 5) - LSI MegaRAID (for Linux/Windows) (Support software RAID 0, 1& 10) Networking - LAN: Intel 6321+ Intel82563EB Dual Port GbE LAN Graphic - VGA: XGI Z7 PCI Display Controller 32MB Onboard I/O Connectors - 1 x Floppy Connector, 1 x USB Connectors (support 2 USB) - 8 * 4pin Fan Header, 1 x SMBus, 2 x Front LAN LED, 1 x Serial Port Header - 24-pin ATX power connector + 8-pin ATX 12V power connector + 4-pin ATX 12V power connector Rear I/O Connectors - 1 x External Serial Port, 2 x External USB Port - 1 x VGA Port, 2 x RJ-45 Port, 1 x PS/2 KB/Mouse EMI - US (FCC, CFR47 Part 15, Class B), Europe (CE, EN55022 & EN55024), Australia (C-TICK) Environment - Operation temperature: 10¿ ~ 35¿ / Non operation temperature: -40¿ ~ 70¿ - Non operation humidity: 20% ~ 90% ( Non condensing) Monitoring - CPU Temperature - FAN RPM
Readmore
Technical Details
- Mfr Part Number: DSBV-DX- CPU: Dual Socket 771 Support Intel Xeon Processor Quad Core 5300 Sequence/ Dual Core 5000/5100
- Chipset: Intel 5000V & 6321ESB
- Memory: 6x 240pin DDR2-667/533 FB-DIMMs, Dual Channel, ECC/REG, Max Capacity 24GB
- Slots: 2x PCI-Express x8 Slots (One runs on x4); 2x PCI-X 133/100MHz Slots; 1x PCI Slot
See more technical details
Images Product

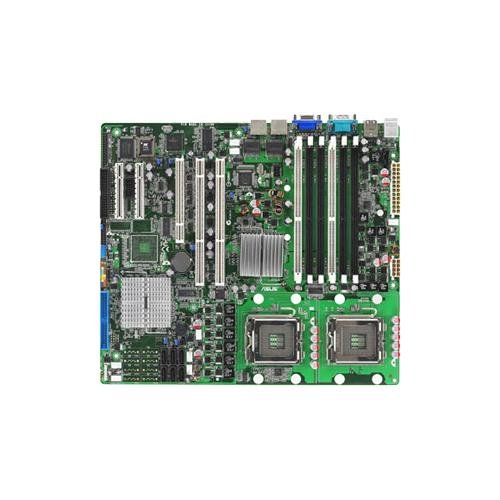

Buy ASUS DSBV-DX LGA771 Intel 5000V FB-DIMM DDR2-667 SSI CEB Motherboard Now
