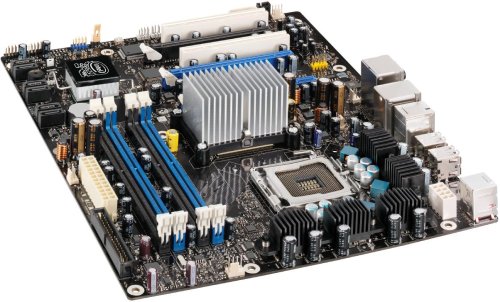

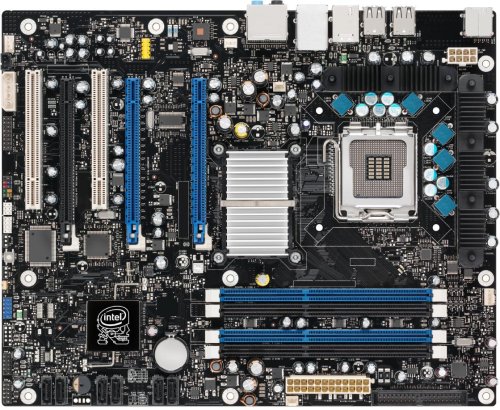

Pulse-pounding gaming & high powered multimedia experiences require the ultimate in performance from your processor & motherboard. Intel Desktop Board DX48BT2 is designed to unleash the power of Intel Core2 Extreme processors. With support for 1600 MHz front side bus, fast DDR3 memory and overclocking, Intel Desktop Board DX48BT2 delivers the gaming performance you deserve. Intel Desktop Board DX48BT2 supports Dolby Home Theatre & Microsoft Windows Vista Premium WHQL certified. ATX Form Factor with Support for both 45nm & 65nm Intel Core2 Quad & Extreme processors (LGA775 / 1600, 1333 or 1066 MHz system bus), Intel Core2 Duo processors (LGA775 / 1333 or 1066 MHz system bus) & for Intel Pentium dual-core processor (LGA775 / 800 MHz system bus). Four 240-pin DDR3 SDRAM DIMM sockets (up to 8GB), Both ECC & non-ECC, Support for DDR3 1600 MHz, DDR3 1333 MHz, DDR3 1066 MHz, or DDR3 800 MHz DIMMs. Intel X48 Express Chipset. 8-channel (7.1) Dolby Home Theater Audio subsystem with five analog audio outputs and two S/PDIF digit8-channel (7.1) DolbyHomeTheaterAudio subsystem with five analog audio outputs and two S/PDIF digital audio outputs (coaxial and optical) using the Sigmatel 9274D audio codec I/O control. Gigabit (10/100/1000 Mbits/sec) LAN subsystem using Intel 82566DC Gigabit Ethernet Controller. Twelve USB 2.0 ports (8 external ports, 2 internal headers), Six Serial ATA 3.0 Gb/s ports, including 2 eSATA port with RAID support supplied by a Marvell controller, Two IEEE-1394a ports (1 external, 1 internal header), Consumer IR receiver & emitter (via internal headers) & One PATA IDE interface with UDMA 33, ATA-66/100 support (2 devices supported). Two PCI Conventional bus add-in card connectors (SMBus routed to both PCI Conventional bus add-in card connectors), One primary PCI Express 2.0 x16 bus add-in card connector, One secondary PCI Express 2.0 x16 bus add-in card connector & One PCI Express 1.0a x16 (electrical x4) bus add-in card connector
Readmore
Technical Details
- ATX Form factor- Gigabit LAN
- 4 Memory Slots (up to 8GB), DDR3 1600/1333/1066/800
- Intel X48, 1600MHz Bus Speed Full Supports Crossfire X 16x16x4x PCIe 2.0 x16
- 8 Channel Audio Support, SPID out with Dolby Digital Live, Dolby Digital ProLogic II, Dolby Digital Speaker, Dolby Digital HeadPhone.
See more technical details
By T. Farris (California)
I'm running a Intel QX6850 Extreme Quad-core CPU on this board. I couldn't be happier. it not the best mobo for over-clocking but that's OK because I don't over clock.
By Michael J. Wade
It can be tricky to get a memory setting that is stable when overclocking, but when you get it... Wow. This board really kicks some ace.
By William R. Carter (Quincy, MA USA)
I had the same problem of intermittent and unexplained restarts. I read somewhere that OCZ recommends a voltage setting of 1.9 volts. This MoBo comes with a default setting of 1.5
Changed it to 1.9 and the problem went away.
By Ahmed Shaker Ahmed
very good motherboard. i recommend it for the super users. the problem with this motherboard is that with memory modules 1600 greater than 4G, u can't upgrade. max. memory 1600 is 4G
By Mark D. Ballentine (Greenville, SC)
Well I suppose this is a good board and Amazon was very quick in replacing it, but out of the box I was unable to enter bios. I was able to update to the latest version no problem and boot into windows vista fine but when pressing F2 all I would get was a blank black screen and I would have to reset. Strange problem, I know. There is one more problem and it's that my computer restarts at random, All parts are brand new and for my sanity sake I hope that is related to the motherboard as well.
Update: Setting OCZ memory voltage to 1.9 fixed the restarting problem, Thanks. It will be a few months before I get a chance to work on the bios problem. In the mean time if anyone else has same problem and comes up with a fix please write review.
